Max Payload
Max flight speed
Max flight time.
Certified against dust and water.

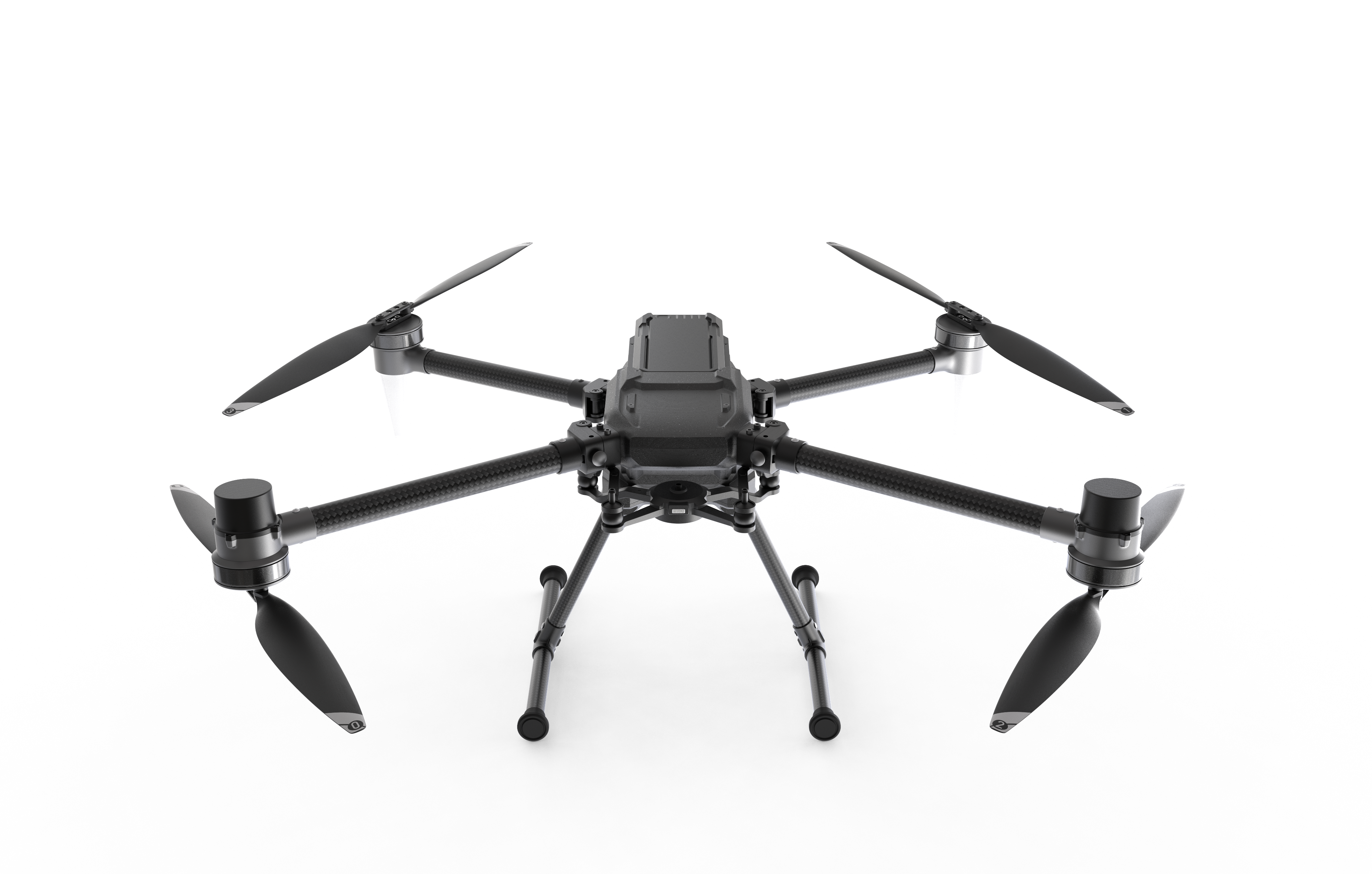

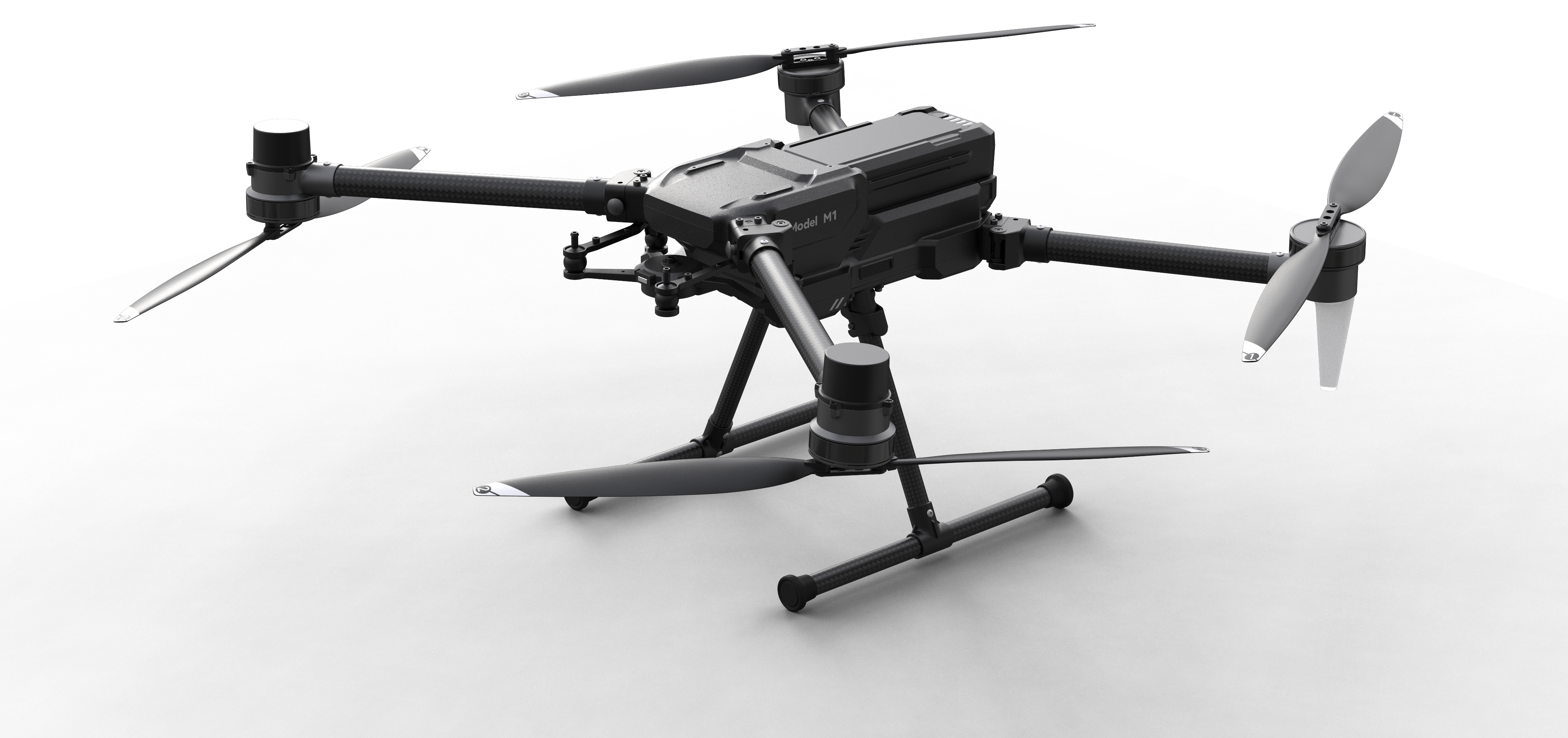

Model M1
The right sensors for your mission.
Rhythm 1
Camera
SONY ILX_LR1
1.38 in full frame (1.41 x 0.94 in)
24mm, 40mm, 50mm
Still images: Approx. 61.0 megapixels max.
Movies: Approx. 50.8 megapixels max.
Specifications
IP44
Anguel Control Accuracy: ±0.01°
Photo Geolocation
MAVLink 2.0
Edge Computing
Nvidia Xavier NX 16G
21 TOPS (INT8)
384-core NVIDIA VoltaTM GPU
6-core NVIDIA Carmel ARM®v8.2 CPU
16 GB eMMC 5.1
Rhythm 2L
Zoom Camera
4K Exmor R CMOS Sensor
4.4 mm (Wide), 88.4 mm (Tele)
F/2.0 to F/3.8
80 mm (Wide end), 800 mm (Tele end)
Edge Computing
Nvidia Xavier NX 16G
21 TOPS (INT8)
384-core NVIDIA VoltaTM GPU
6-core NVIDIA Carmel ARM®v8.2 CPU
16 GB eMMC 5.1
Range Finder
905nm Laser (Class 1)
Range: 5 to 1200 m
Measurement Frequency ≤ 1 Hz
Accuracy:
- 6 - 60 m: ±1 m
- 70 - 100 m: ±1.5 m
- 110 - 400 m: ±2 m
- > 400 m: ±0.4% m
Rhythm 3
Zoom Camera
4K Exmor R CMOS Sensor
4.4 mm (Wide), 88.4 mm (Tele)
F/2.0 to F/3.8
80 mm (Wide end), 800 mm (Tele end)
Infrared Thermal Camera
VOx
40mm equivalent
FOV 48°×38° DFOV: 61°
640*512 px
F/1.0
Range Finder
905nm Laser (Class 1)
Range: 5 to 1200 m
Measurement Frequency ≤ 1 Hz
Accuracy:
- 6 - 60 m: ±1 m
- 70 - 100 m: ±1.5 m
- 110 - 400 m: ±2 m
- > 400 m: ±0.4% m
Supports rapid integration with PX4 and ArduPilot platforms, and can also be easily integrated into custom-developed flight control platforms complying with the same standards.
Follow the unseen, focus on the felt
Rhythm3 features 4K ultra-high definition (UHD) resolution, capable of outputting 3840×2160 ultra-clear imagery. With support for up to 720x hybrid zoom, every detail can be rendered with exceptional clarity and precision.
Flight Performance
Redefine the boundaries of industrial drone applications through technological breakthroughs.
Optimized Efficiency for Uninterrupted Flight
The AQ3F drone features intelligent energy management and advanced power optimization for longer, stable flights. Spend less time charging and more time flying. Ideal for inspection and daily tasks, it lets you focus on your mission without frequent recharging.
Efficient energy management (90 mins+) to meet the needs of long-term
continuous operations and surveillance.
90min
Max flight time（No payload）
2.5kg
Max Payload
20m/s
Max flight speed
System Architecture
Full-System Network
Built on an open architecture, ensuring maximum compatibility and extensibility for developers and enterprise integrators.
Seamless integration with PX4/APM open-source flight control platforms
Supports custom flight control integration personalized requirements
AQUILA I/O GUIDANCE core technology ensures stable system operation
Real-time redundant data links for fail-safe operations
CE Certification
European Standard
FCC Certification
U.S. Standards
CORE FC
Safety
5G LinkDrone Network Architecture
Hover over nodes to visualize data transmission paths
Ground Station Aviator
192.168.2.117 (default)
Enpulse Wireless Air Unit
192.168.2.100
Phalanx Eth Switch
192.168.2.110
Payload
192.168.2.119 (default)
Wireless Link
Ethernet LinkAquila 3F Specs
Specifications
Second-gen Video Transmission Technology
Enpulse M2
Operating Frequency
5.180GHz - 5.825GHz
Transmitter Power
29dbm Max
Customizable features
Supports point-to-multipoint, Mesh Networking
Hovering Accuracy (with moderate or no wind)
Vertical: ±0.1 m Horizontal: ±0.1 m
RTK Positioning Accuracy
1 cm +1ppm (horizontal)
1.5 cm +1ppm (vertical)
Max Angular Velocity
120 ˚/s
Max Transmission Distance (unobstructed, free of interference)
10km （omnidirectional antenna）15KM （directional antenna）
Max Speed
12m/s (default)
20m/s（with Software enabled）
Max Flight Altitude
>5000m
Max Wind Speed Resistance
15m/s
Max Flight Time (no wind)
77 minutes (No payload)
30 minutes (with 3kg payload)
Max Hover Time (no wind)
68 minutes (No payload)
I/O Interfaces
H7 based Phalanx G1
ETH Data Switch hub
Exterior UART interface
Propeller
19 inch low noise propeller
GPS
Dual RTK redundant positioning system with Heading function
Operating Temperature
-10° to 50° C ( 14° to 122° F)
Ingress Protection Rating
IP53
Remote Controller
System Version
Android10
Screen
7 inch 1080P 1000nit
Battery
7.4V，10000mAh，74Wh
Max Transmitting Distance (unobstructed, free of interference)
10km
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
Battery Runtime
4.5h
Operating Environment
-10° to 50° C (-14° to 122° F)
External Interfaces
2*USB、1*HDMI、2*USB-C
Flight Battery
Capacity
12000 mAh
Standard Voltage
23.1V
Max Charging Voltage
26.4V
Battery Type
Lipo 6S
Energy
277Wh
Weight
1.3kg
Operating Environment
-10° to 50° C (-14° to 122° F)
Made in Japan
