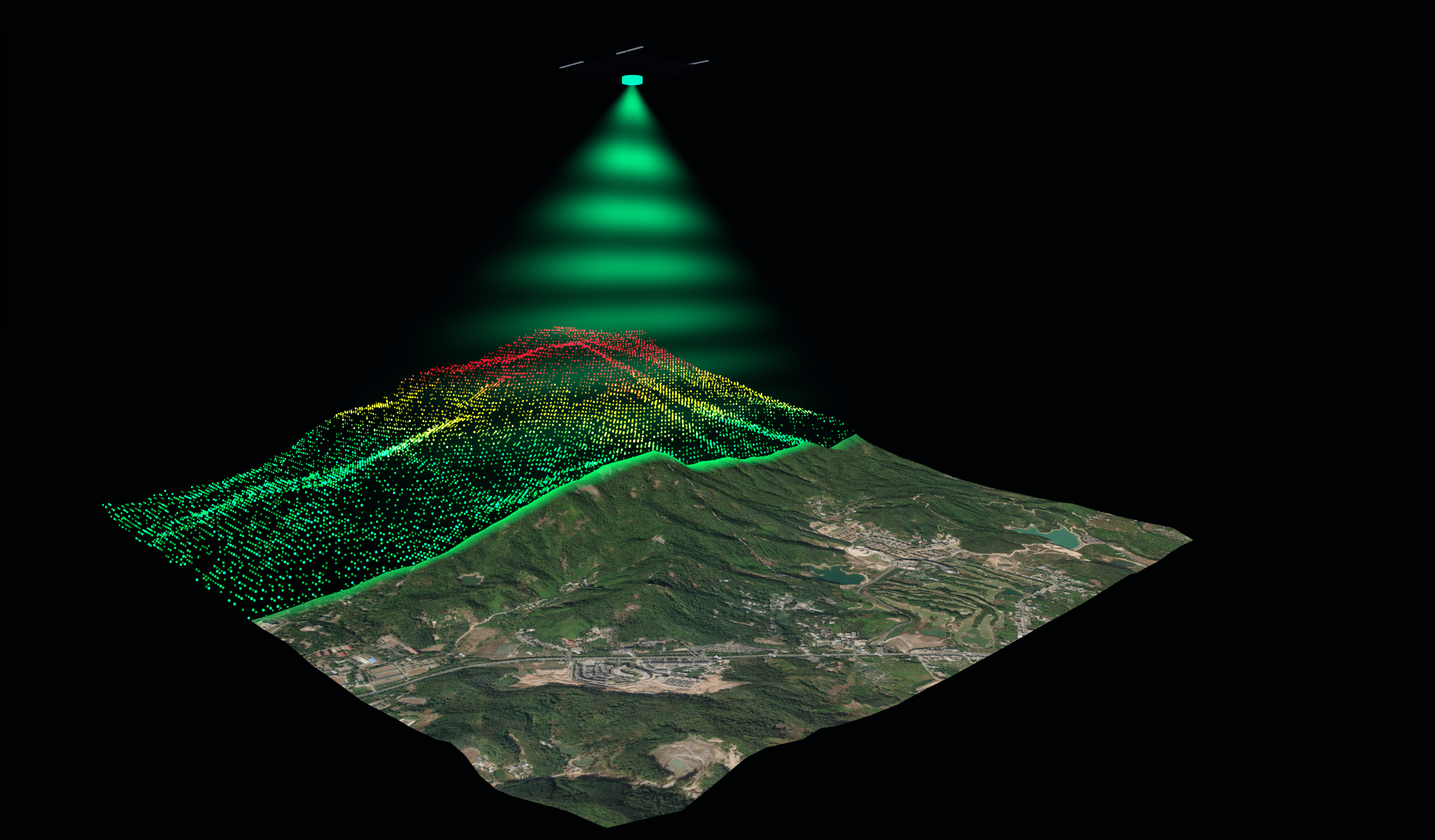

Terrain Ranging
Precise downward-facing LiDAR provides real-time ground distance measurement for accurate terrain following.
1.5kg
Max Payload
20m/s
Max flight speed
65min
Max flight time.
IP53
Certified against dust and water.
Lanzent
The right sensors for your mission.

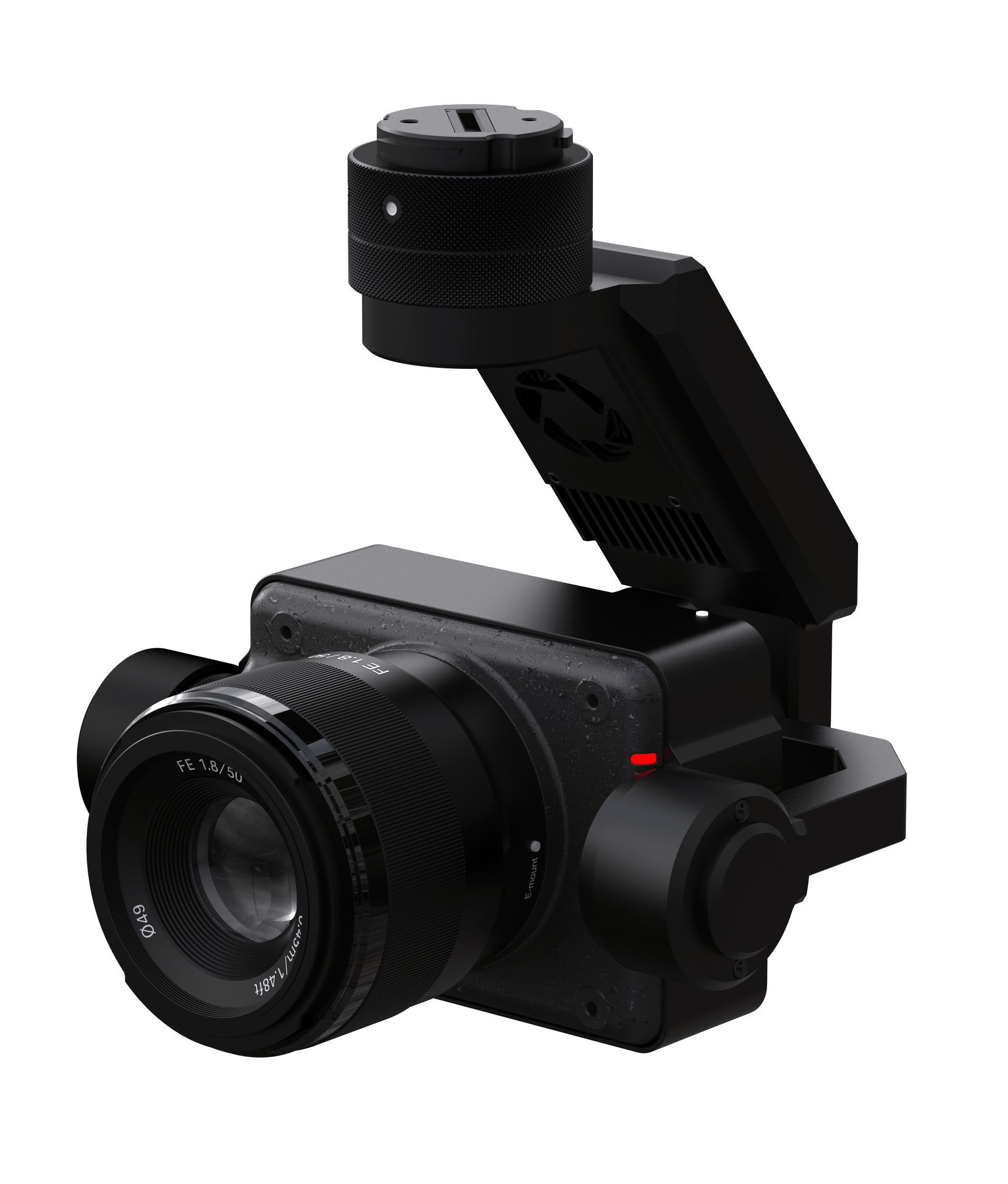

Rhythm 1
Camera
- SONY ILX_LR1
- 1.38 in full frame (1.41 x 0.94 in)
- 24mm, 40mm, 50mm
- Still images: Approx. 61.0 megapixels max.
- Movies: Approx. 50.8 megapixels max.
Specifications
- IP44
- Anguel Control Accuracy: ±0.01°
- Photo Geolocation
- MAVLink 2.0
Edge Computing
- Nvidia Xavier NX 16G
- 21 TOPS (INT8)
- 384-core NVIDIA VoltaTM GPU
- 6-core NVIDIA Carmel ARM®v8.2 CPU
- 16 GB eMMC 5.1
Rhythm 1

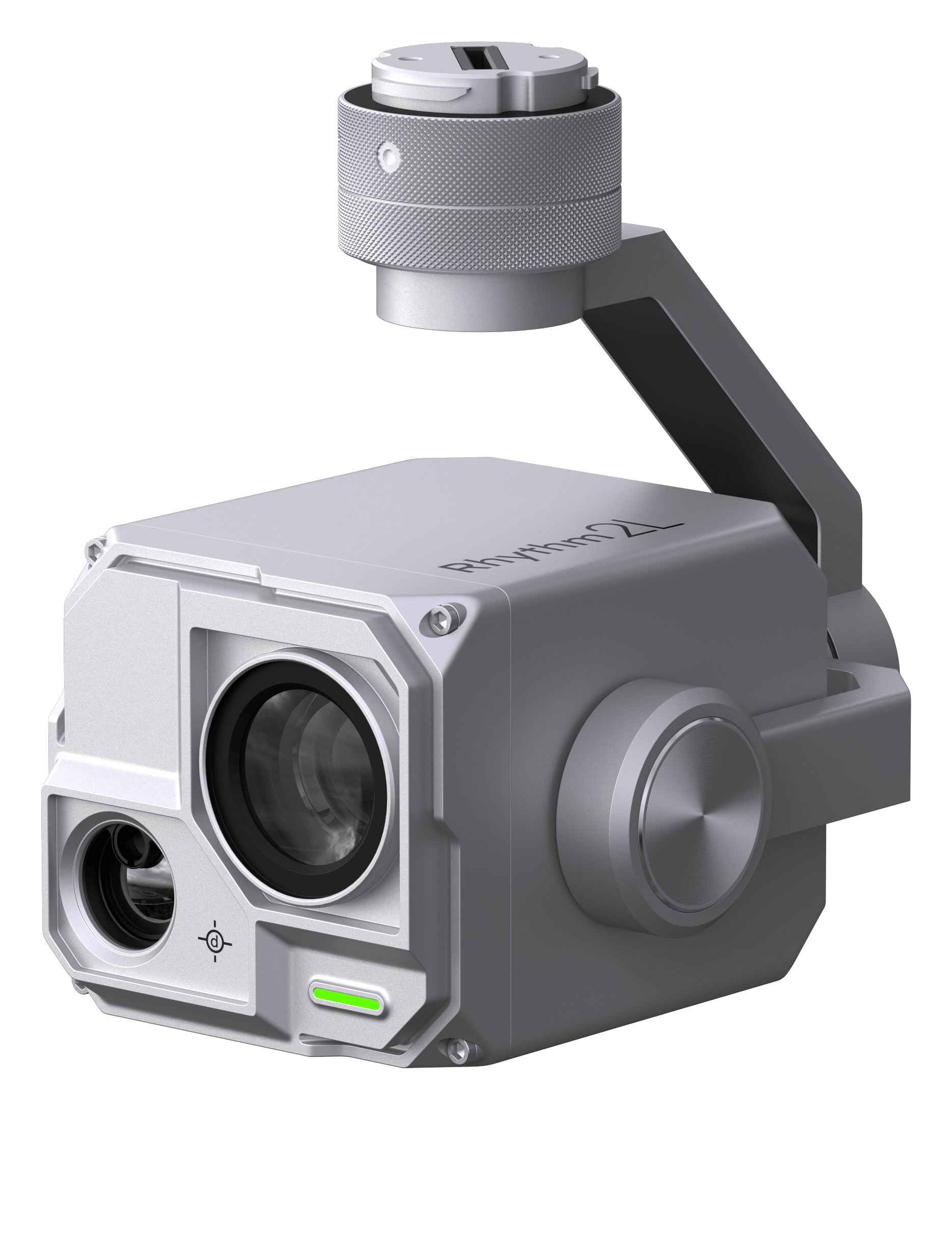

Rhythm 2L
Zoom Camera
- 4K Exmor R CMOS Sensor
- 4.4 mm (Wide), 88.4 mm (Tele)
- F/2.0 to F/3.8
- 80 mm (Wide end), 800 mm (Tele end)
Edge Computing
- Nvidia Xavier NX 16G
- 21 TOPS (INT8)
- 384-core NVIDIA VoltaTM GPU
- 6-core NVIDIA Carmel ARM®v8.2 CPU
- 16 GB eMMC 5.1
Range Finder
- 905nm Laser (Class 1)
- Range: 5 to 1200 m
- Measurement Frequency ≤ 1 Hz
- Accuracy:
- 6 - 60 m: ±1 m
- 70 - 100 m: ±1.5 m
- 110 - 400 m: ±2 m
- > 400 m: ±0.4% m
Rhythm 2L

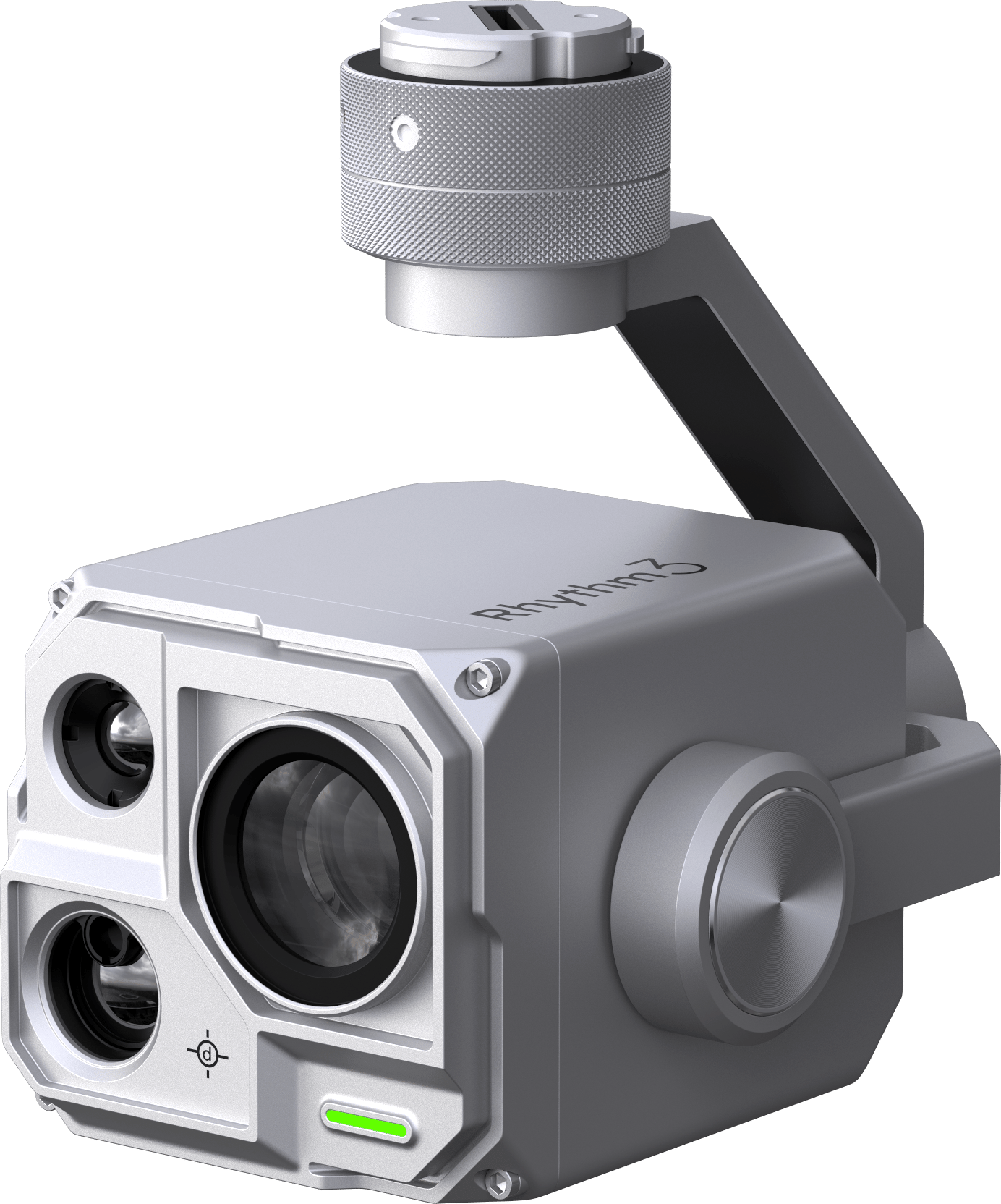

Rhythm 3
Zoom Camera
- 4K Exmor R CMOS Sensor
- 4.4 mm (Wide), 88.4 mm (Tele)
- F/2.0 to F/3.8
- 80 mm (Wide end), 800 mm (Tele end)
Infrared Thermal Camera
- VOx
- 40mm equivalent
- FOV 48°×38° DFOV: 61°
- 640*512 px
- F/1.0
Range Finder
- 905nm Laser (Class 1)
- Range: 5 to 1200 m
- Measurement Frequency ≤ 1 Hz
- Accuracy:
- 6 - 60 m: ±1 m
- 70 - 100 m: ±1.5 m
- 110 - 400 m: ±2 m
- > 400 m: ±0.4% m
Rhythm 3
Supports rapid integration with PX4 and ArduPilot platforms, and can also be easily integrated
into custom-developed flight control platforms complying with the same standards.
- Request a Demo

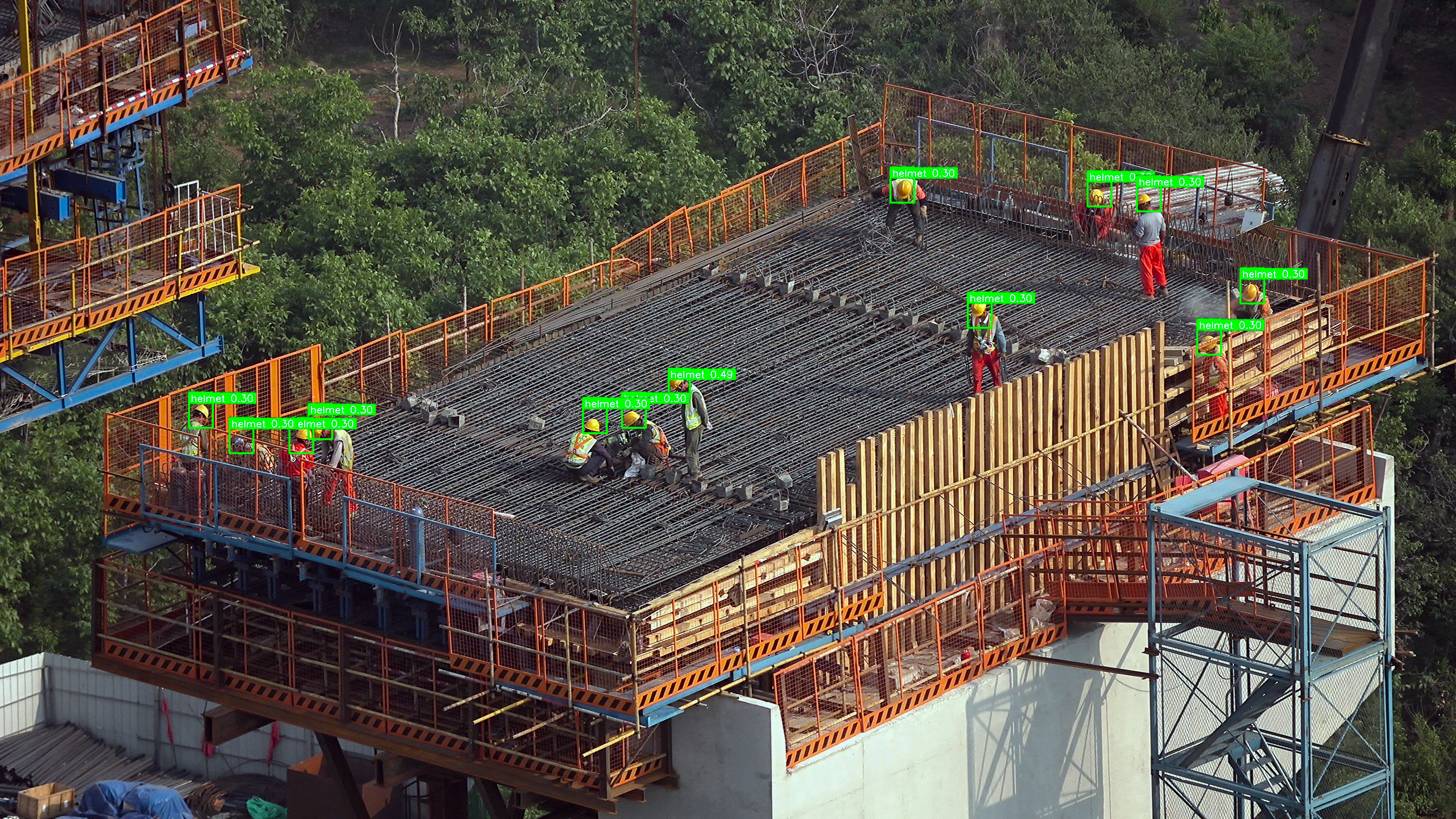

Elevate Your Security. Smart, Seamless, Absolute.
Integrating smart UAVs, all-weather payloads, and AI analytics to eliminate ground blind spots. We deliver an automated aerial defense network featuring autonomous patrol, real-time tracking, and instant alerts.

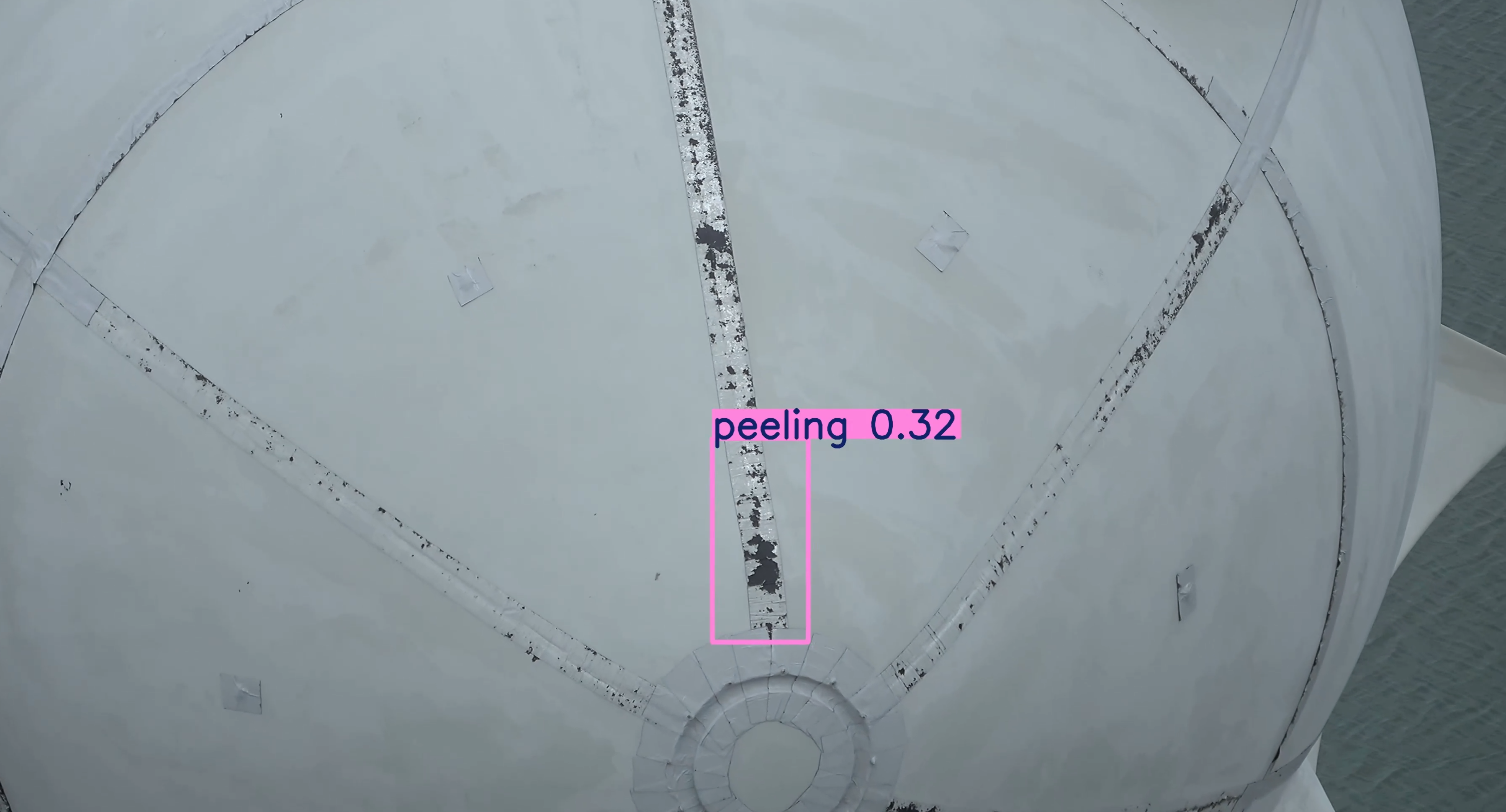

Request a DemoPrecision Inspection. Safety. Efficiency.
Replacing hazardous manual labor with autonomous drones. Delivering precision detection and smart analytics for safer, faster industrial inspections.
Follow the unseen, focus on the felt
Rhythm3 features 4K ultra-high definition (UHD) resolution, capable of outputting 3840×2160 ultra-clear imagery. With support for up to 720x hybrid zoom, every detail can be rendered with exceptional clarity and precision.
Night Flight
Advanced low-light sensors and built-in navigation lights ensure safe and reliable operations after dark.
Flight Performance
Redefine the boundaries of industrial drone applications through technological breakthroughs.
Optimized Efficiency for Uninterrupted Flight
The AQ3F drone features intelligent energy management and advanced power optimization for longer, stable flights. Spend less time charging and more time flying. Ideal for inspection and daily tasks, it lets you focus on your mission without frequent recharging.
Efficient energy management (90 mins+) to meet the needs of long-term continuous operations and surveillance.
90min
Max flight time（No payload）
2.5kg
Max Payload
20m/s
Max flight speed

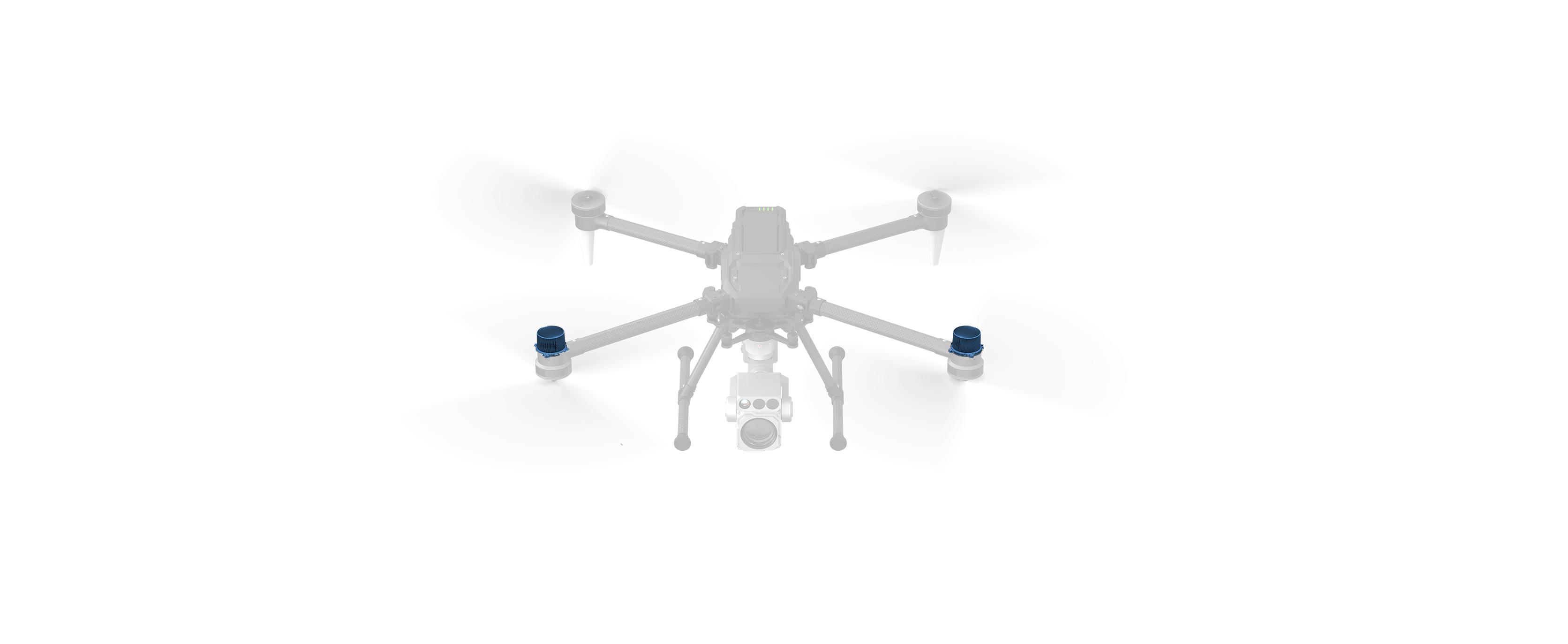

Dual RTK & E-Heading System
Powered by a dual RTK GNSS system with E-heading support. By eliminating magnetic compass dependency, it ensures centimeter-level positioning and rock-solid heading alignment, even in high-interference environments.
Anti-Magnetic Interference
E-Heading System
Centimeter-Level Precision
Dual RTK

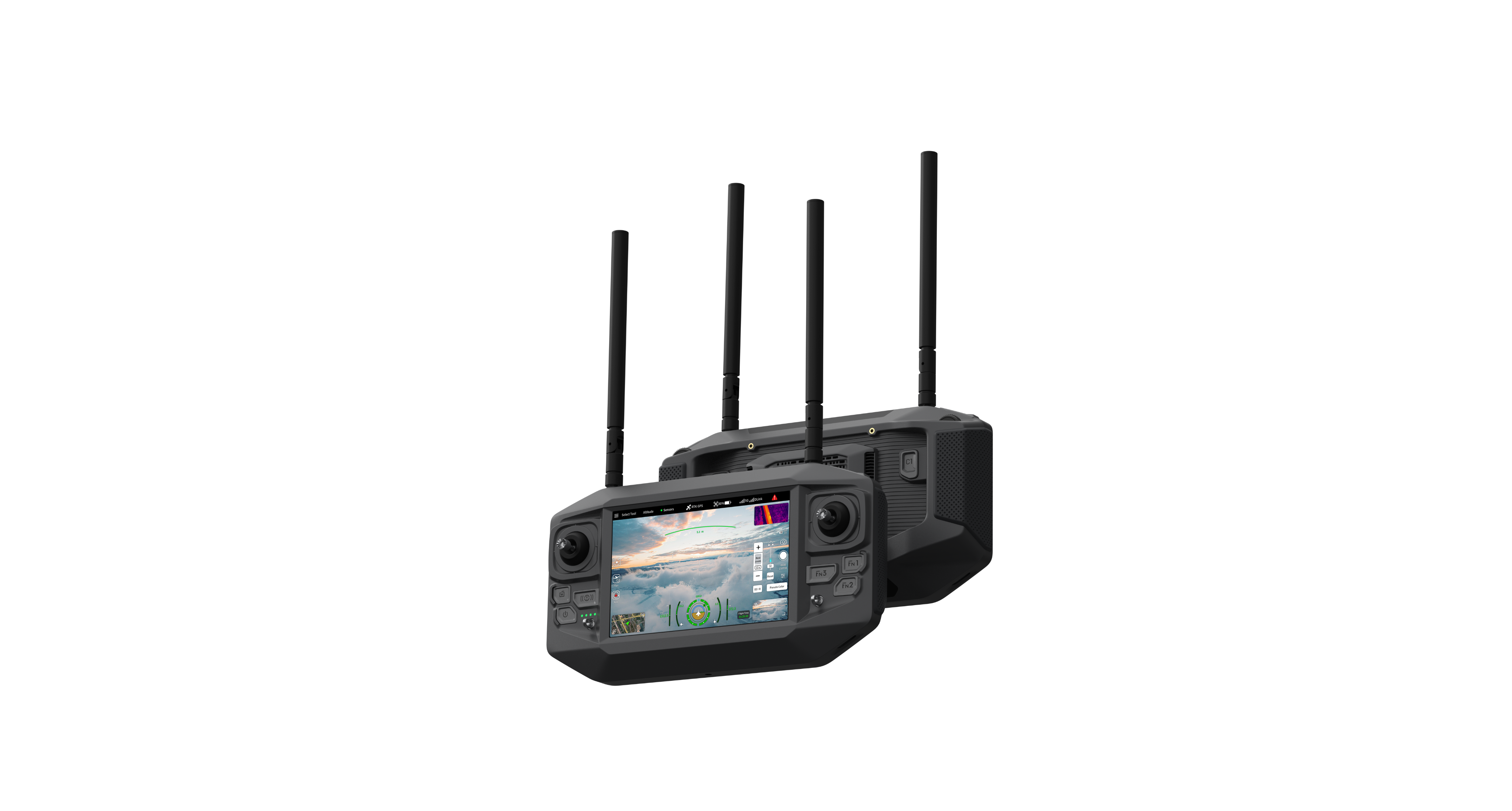

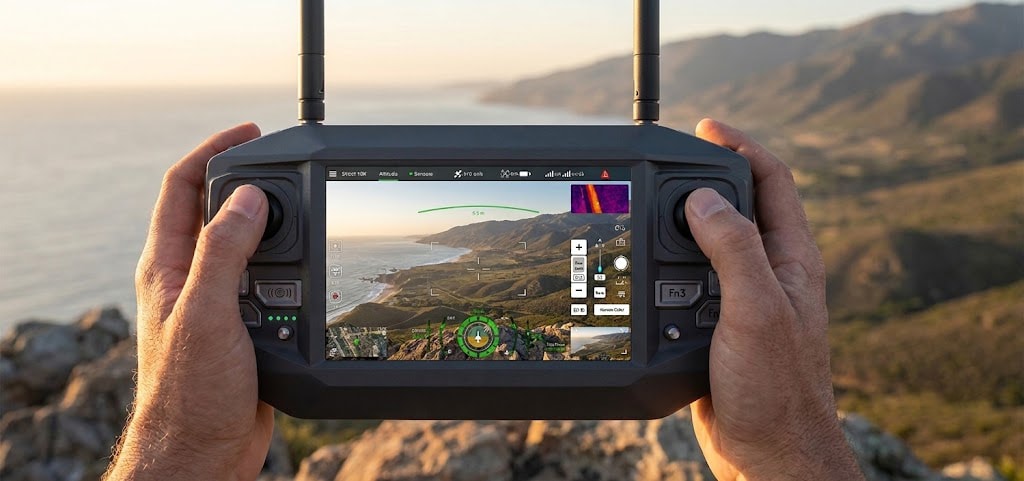

Aviator 2
Take complete control with the next-generation Aviator 2. Designed for precision, durability, and ultimate pilot comfort.
All-new Remote Controller
A beautifully clean interface that puts the mission first. Plan, execute, and analyze with unprecedented ease.
Clean, Intuitive Layout
Say goodbye to cluttered screens. Only the data you need, exactly when you need it.
All-new Precision Joystick
Enhanced tactile feedback and zero dead zones.
Dedicated Controls
Hardware emergency stop, instant mode switch, and two-stage shutter button.

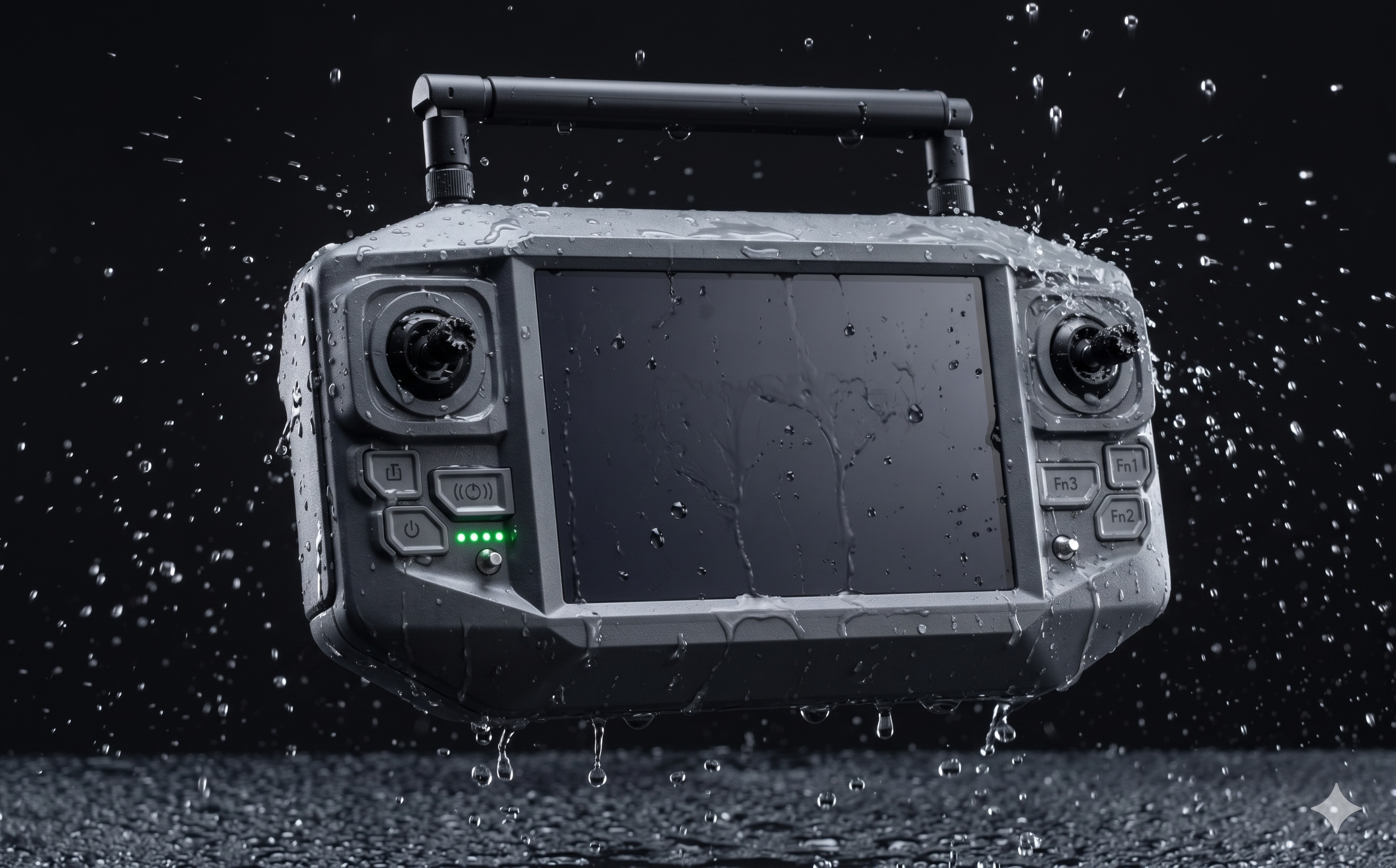

All-Weather Reliability
Designed to perform in the most demanding outdoor environments, this device offers exceptional all-weather reliability
IP44
Water and dustproof
-10°Cto 50°C
Capable in climates both hot and cold

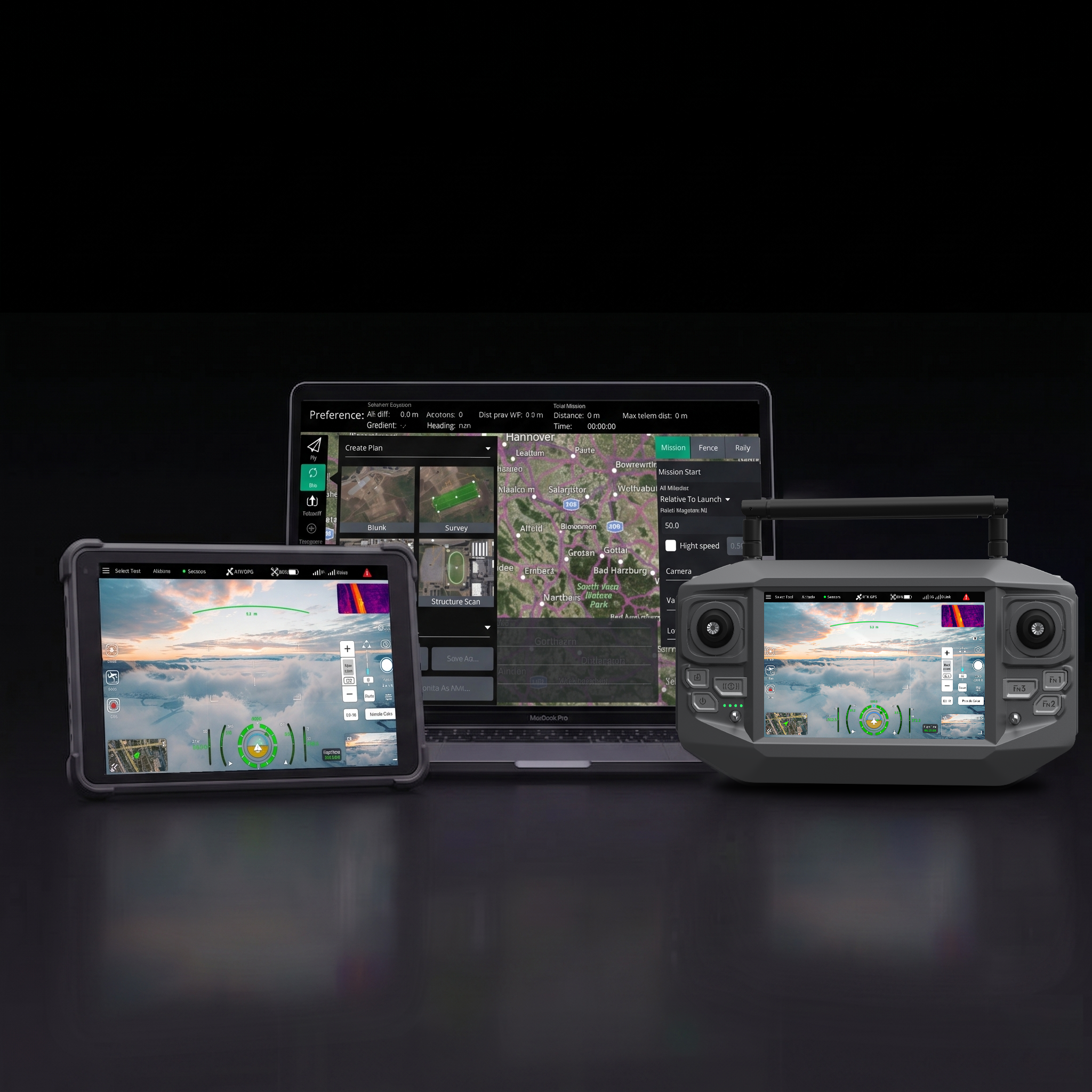

Unified Control. Seamless Collaboration.
An industrial-grade, cross-platform Ground Control Station (GCS). Seamlessly syncing across smart controllers, rugged tablets, and laptops, it integrates mission planning, live telemetry, and automated flight management into a single cohesive ecosystem.
Power redefined. Ready to fly.

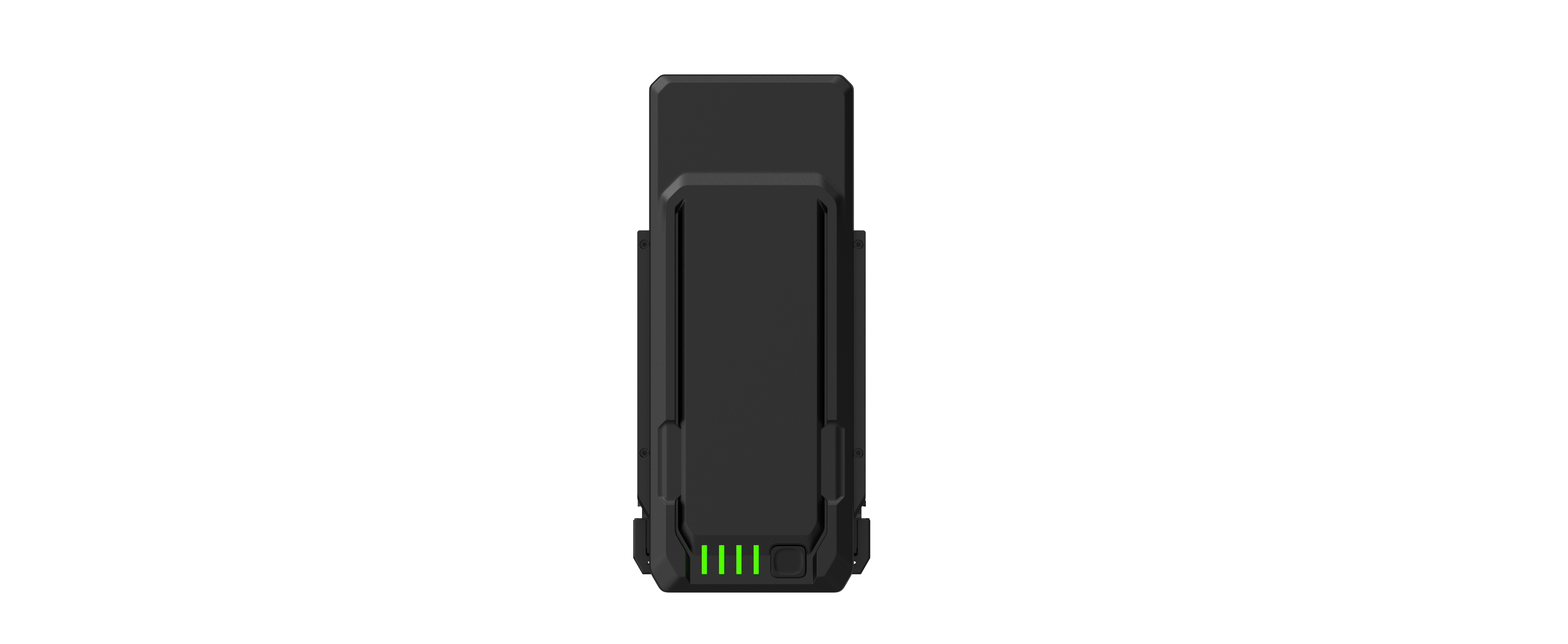

The ILP620TS is a high-performance intelligent semi-solid-state battery with a 438Wh capacity, engineered for enduring flight. Its advanced semi-solid-state technology enhances energy density while ensuring reliable performance in demanding environments.
ILP620TS
BATTERY
438Wh
Battery capacity
Semi-Solid-State
20Ah Semi-Solid-State lithium-ion battery cell
25.2V
max voltage
3.65V
platform voltage
15A Max
6S intelligent battery charger

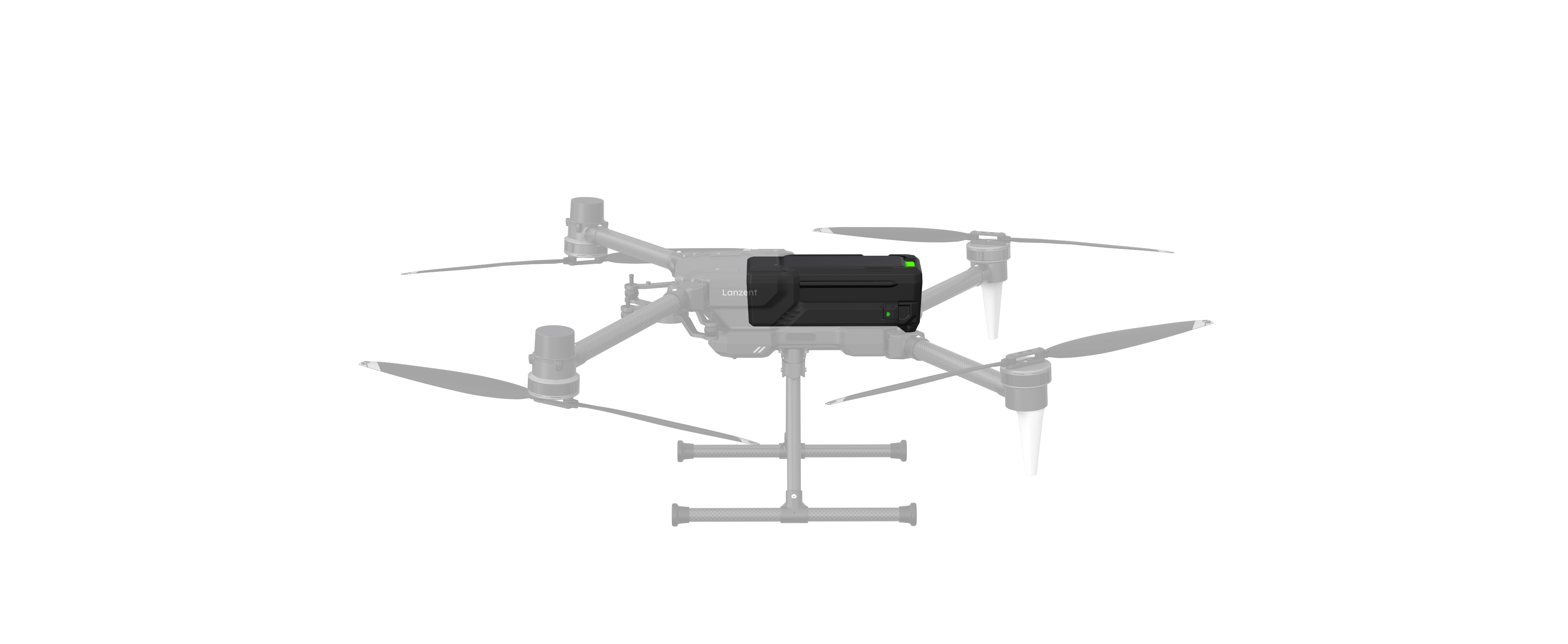

Locked. Ready. Safe.
Built-in sensors monitor the connection in real time, triggering an instant sound-and-light alert if the battery isn't perfectly locked.
Compatible with Mainstream Flight Controllers
Full-System Network

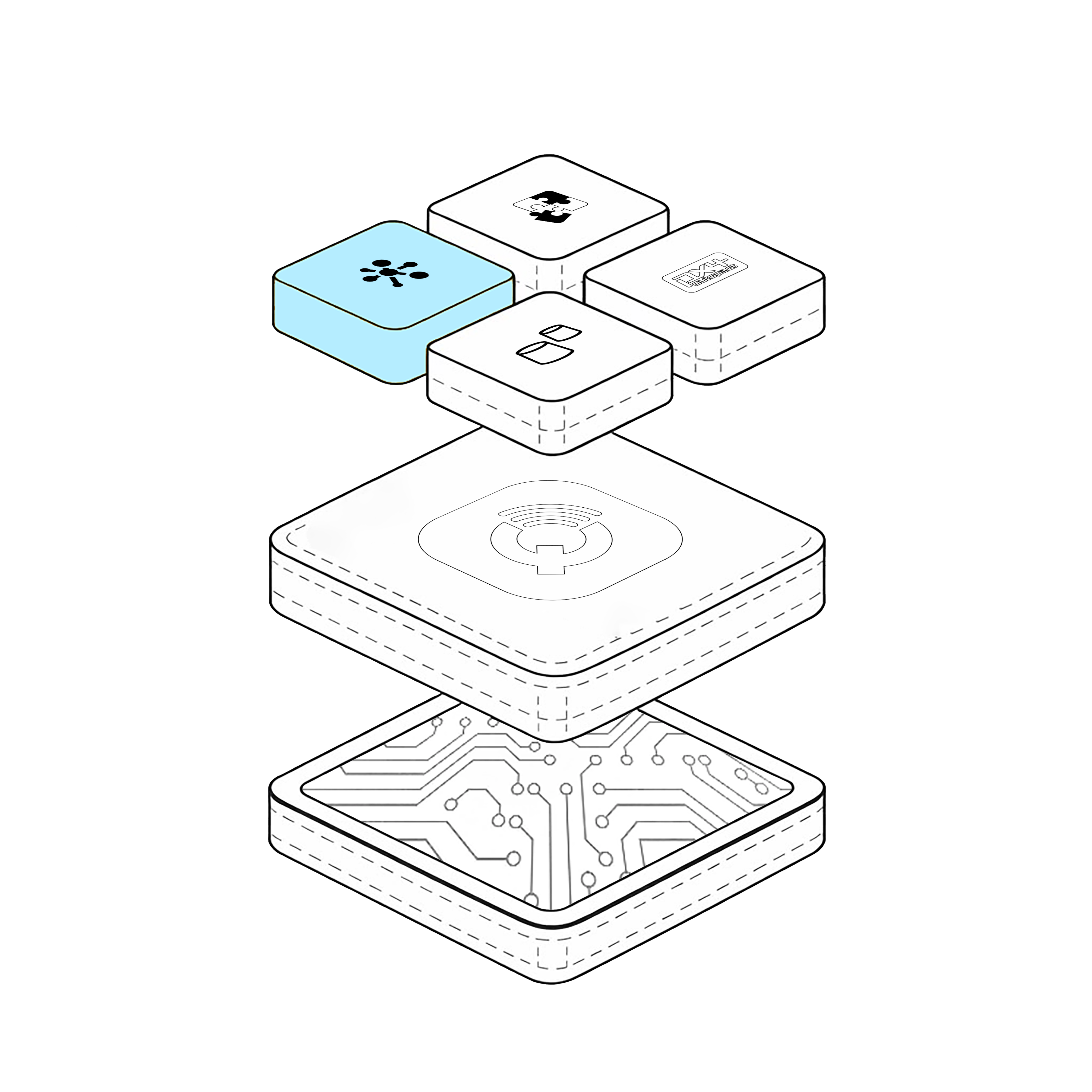

System Architecture
Built on an open architecture, ensuring maximum compatibility and extensibility for developers and enterprise integrators.
Seamless integration with PX4/APM open-source flight control platforms- Supports custom flight control integration personalized requirements
- AQUILA I/O GUIDANCE core technology ensures stable system operation
- Real-time redundant data links for fail-safe operations
CE Certification
European Standard
FCC Certification
U.S. Standards
Drone Network Architecture
Hover over nodes to visualize data transmission paths
Ground Station Aviator
192.168.2.117 (default)
Enpulse Wireless Module Air Unit
192.168.2.100
Flight controller (UDP)
192.168.2.110
Payload
192.168.2.119 (default)
Wireless LinkEthernet LinkActive Data Stream
Lanzent Specs
Specifications
- Second-gen Video Transmission Technology
- Enpulse M2
- Operating Frequency
- 5.180GHz - 5.825GHz
- Transmitter Power
- 29dbm Max
- Customizable features
- Supports point-to-multipoint, Mesh Networking
- Hovering Accuracy (with moderate or no wind)
- Vertical: ±0.1 m Horizontal: ±0.1 m
- RTK Positioning Accuracy
- 1 cm +1ppm (horizontal) 1.5 cm +1ppm (vertical)
- Max Angular Velocity
- 120 ˚/s
- Max Transmission Distance (unobstructed, free of interference)
- 10km （omnidirectional antenna）15KM （directional antenna）
- Max Speed
- 12m/s (default) 20m/s（with Software enabled）
- Max Flight Altitude
- >5000m
- Max Wind Speed Resistance
- 15m/s
- Max Flight Time (no wind)
- 77 minutes (No payload) 30 minutes (with 3kg payload)
- Max Hover Time (no wind)
- 68 minutes (No payload)
- I/O Interfaces
- H7 based Phalanx G1 ETH Data Switch hub Exterior UART interface
- Propeller
- 19 inch low noise propeller
- GPS
- Dual RTK redundant positioning system with Heading function
- Operating Temperature
- -10° to 50° C ( 14° to 122° F)
- Ingress Protection Rating
- IP53
Remote Controller
- System Version
- Android11
- Screen
- 7 inch 1080P 1500nit
- Battery
- 7.4V，10000mAh，74Wh
- Max Transmitting Distance (unobstructed, free of interference)
- 10km
- Operating Frequency
- 2.405-2.475 GHz , 5.725-5.850 GHz(ENPLUSE M1) 5.180-5.240 GHz , 5.745-5.825 GHz(ENPLUSE M2)
- Battery Runtime
- 5.5h
- Operating Environment
- -10° to 50° C (-14° to 122° F)
- External Interfaces
- 2*USB、1*HDMI、2*USB-C
Flight Battery
- Capacity
- 12000 mAh
- Standard Voltage
- 23.1V
- Max Charging Voltage
- 26.4V
- Battery Type
- Lipo 6S
- Energy
- 277Wh
- Weight
- 1.3kg
- Operating Environment
- -10° to 50° C (-14° to 122° F)
