Smart. Open. AI-Powered Camera
Edge Computing
- Nvidia Xavier NX 16G
- 21 TOPS (INT8)
- 384-core NVIDIA VoltaTM GPU
- 6-core NVIDIA Carmel ARM®v8.2 CPU
- 16 GB eMMC 5.1
Zoom Camera
- 4K Exmor R CMOS Sensor
- 4.4 mm (Wide), 88.4 mm (Tele)
- F/2.0 to F/3.8
- 80 mm (Wide end), 800 mm (Tele end)
Range Finder
- 905nm Laser (Class 1)
- Range: 5 to 1200 m
- Measurement Frequency ≤ 1 Hz
- Accuracy:
Beyond Sight, Into Detail
Rhythm2L features 4K ultra-high definition (UHD) resolution, capable of outputting 3840×2160 ultra-clear imagery. With support for up to 720x hybrid zoom, every detail can be rendered with exceptional clarity and precision.
90X
Without Quality
Lose
30X
Optical Zooming
with SONY@FPSR
20X
Optical Zooming
Three-Axis Sync. Sets the New Standard in Stability
Rhythm2L incorporates a three-axis mechanical stabilization gimbal, which effectively counteracts shakes and vibrations during flight, enabling the capture of stable and clear images across various flight conditions.

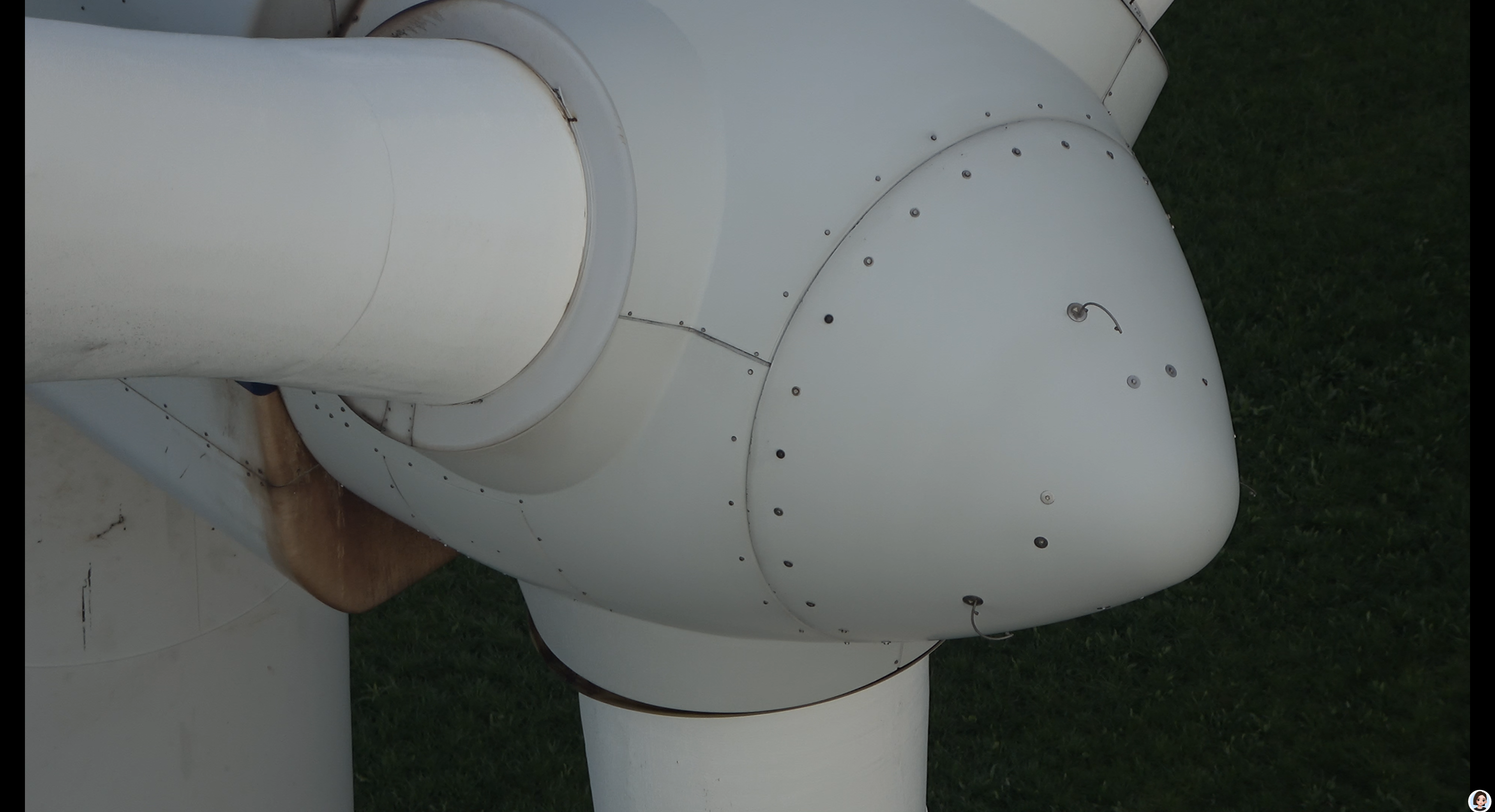

Real-World Imaging Samples:
Real-Time Data Control
Whether for outdoor exploration, engineering surveying, or security monitoring, this laser rangefinder effortlessly locks onto distant targets with its 1200-meter ultra-long range capability.
Target Geolocation Calculation
Calculates the latitude and longitude of a target.
1200m
max
≤ 1 Hz
Measurement Frequency
The sensor packages on the Rhythm2L supercharge your sight,
enabling you to capture it all in high-definition. Because the datais in the details.
Tailored AI
Neural Recognition Model
Rhythm2L is equipped with Nvidia Xavier NX
possessing unparalleled computational power to make accurate decisions in real-time.
Inspection
Surveillance
Security
Search & Rescue
Visualize Your Custom
Orchestrate complex machine learning workflows with Rhythm's intuitive, component-based architecture. Monitor data flow in real-time.
Adaptive Workflow Engine
Data Input
Ingest raw data from multiple sources including SQL, NoSQL, and file systems.
AI Train Center
High-performance computing clusters for model training and fine-tuning.
AI Model
Version-controlled model registry with automated deployment pipelines.
Rhythm Camera
Visual perception system for real-time monitoring and analysis.
Data Collection
Aggregated insights and structured data output for downstream apps.
Industry Verticals
Domain-Specific Solutions
Trainable models for specialized use cases. Contact us for custom dataset training and implementation timelines.
Construction Site Safety
AI-powered detection of hard hat compliance and safety gear verification.
Learn More
Infrastructure Inspection
Automated identification of bridge cracks, slope hazards, potholes, and landslides.
Learn More
Maritime Search & Rescue
Person detection in aquatic environments to support critical rescue operations.
Learn More
Power Under the Hood
Nvidia AI Integration
Processing at the edge. The Rhythm platform brings server-class AI performance to the skies.
NVIDIA Jetson Xavier NX
The world's smallest AI supercomputer for embedded and edge systems. Delivers up to 21 TOPS of accelerated computing capability.
384
CUDA Cores
48
Tensor Cores
Powered by Yolor AI
Utilizing the "You Only Learn One Representation" unified network for superior object detection speed and accuracy in dynamic environments.
Real-time Inference
Instantaneous analysis of video feeds for immediate tracking, classification, and decision-making on the edge.
Tailored Neural Models
Customizable neural networks optimized for specific industry verticals including construction, maritime, and infrastructure.
Open-source Ecosystem
Built for flexibility and integration. The Rhythm platform seamlessly integrates with the world's leading open-source flight control systems.
PX4 & APM Support
Native support for the most popular open-source flight stacks.
QGroundControl (QGC)
Full compatibility with QGC for mission planning and control.
Cube Pilot Ready
Works seamlessly with Cube flight controllers (formerly Pixhawk).
Developer Kit
Third-party development kits available for custom integration.
APM/PX4 Config
MavLink Protocol
Payload: Aviator+M2+
Assembled and Supported
in Germany
Headquarters：Op de Wisch 2, 25479 Ellerau, Germany
Shining pearl of design
A superior pan-tilt system goes far beyond being a mere mechanical structure to being an intelligent system.
One Gimbal, Infinite Flight Options
Our gimbal camera features a universal quick-release mount,
seamlessly compatible with a wide range of drone platforms.
Swap in seconds, fly any aircraft, and capture professional-grade
imagery across your entire fleet—no custom engineering required.

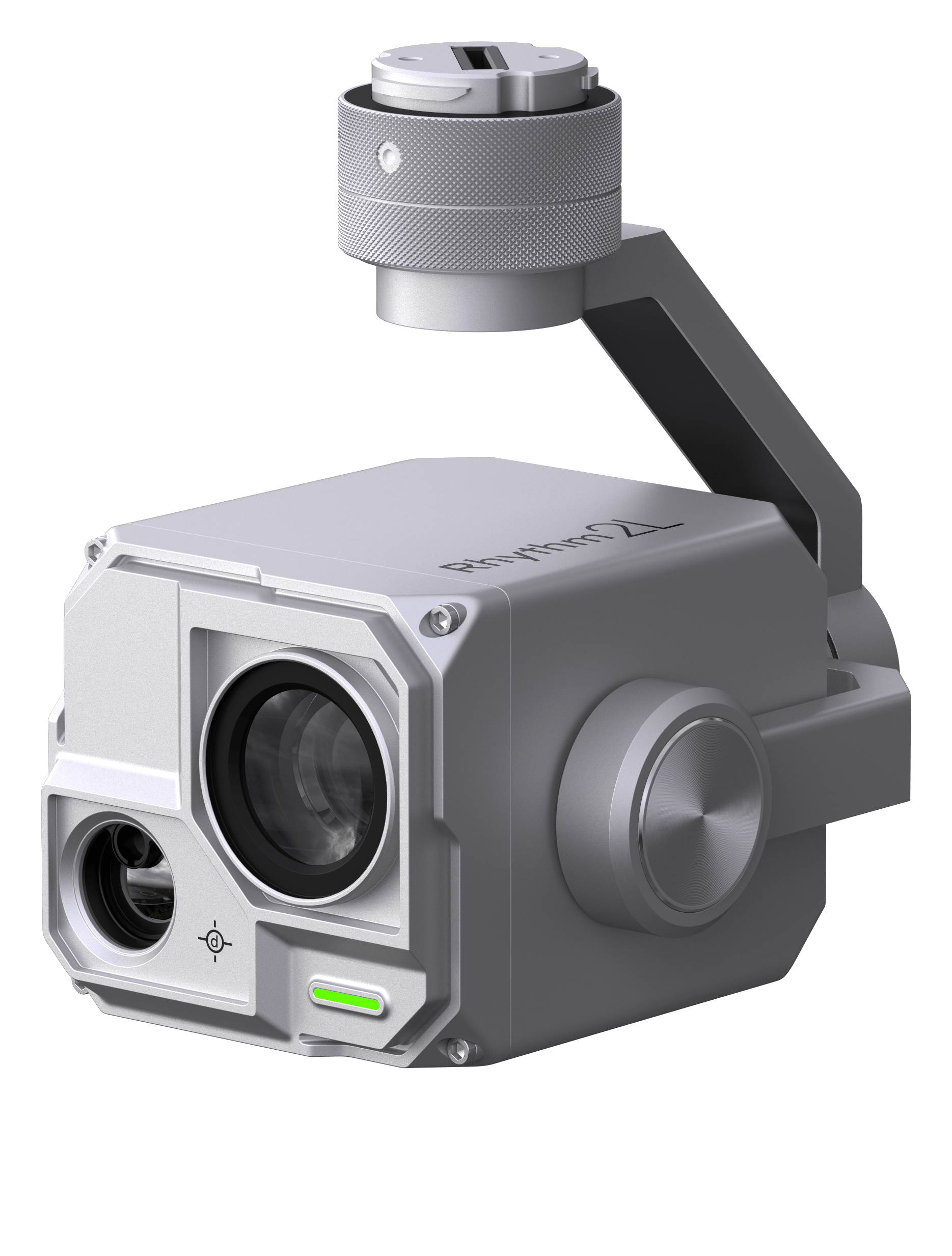

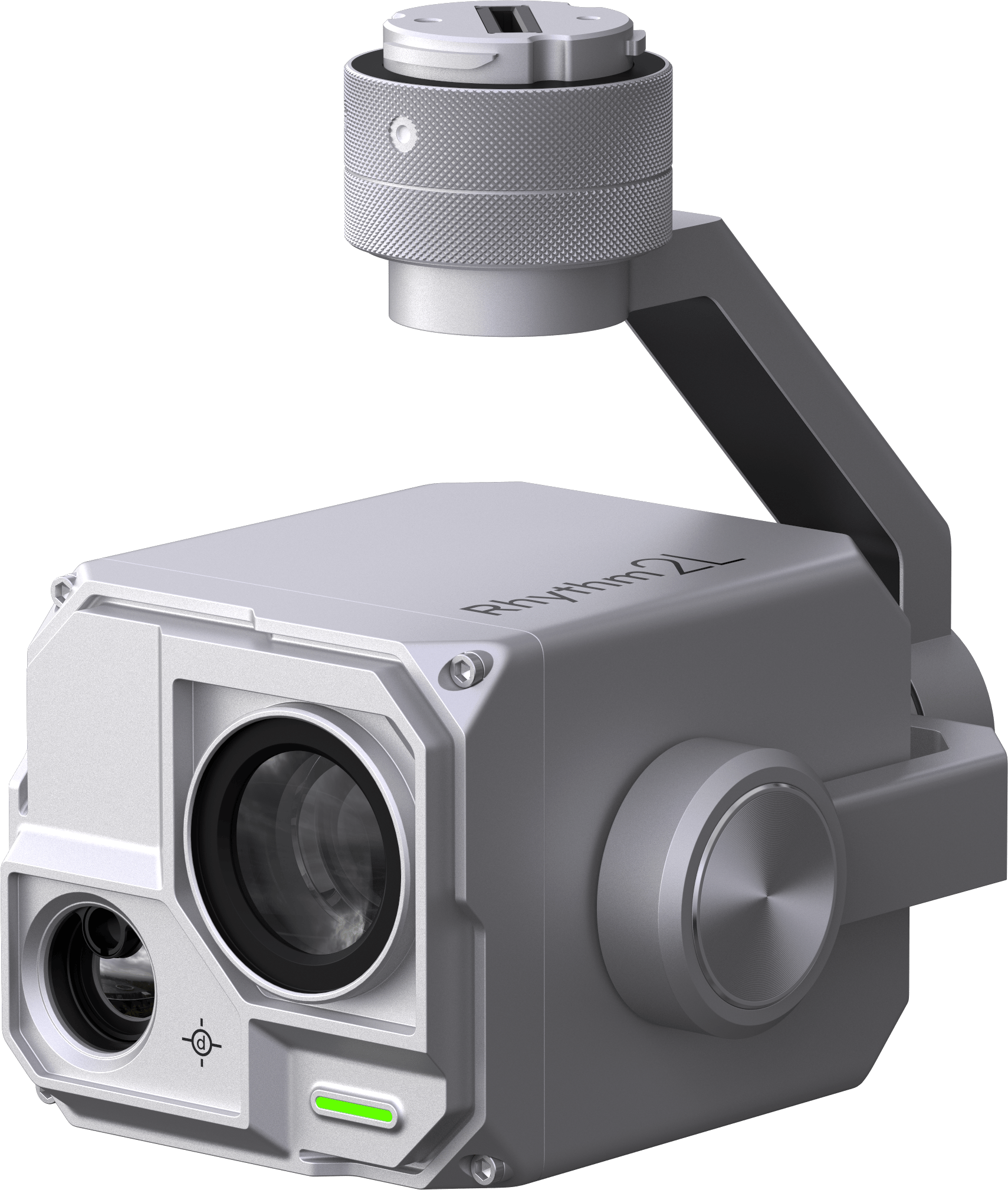

Aircraft-Grade Aluminum Gimbal Camera
Rhythm2L is precision-crafted from high-strength aluminum alloy, delivering the perfect balance of lightweight agility and rugged durability.
Engineered to withstand harsh field conditions, it maintains stable performance while keeping your drone payload light—so you fly longer, shoot sharper, and operate with confidence.
Frequently Asked Questions
Which flight controllers are Rhythm payloads compatible with?+
Rhythm payloads support PX4, ArduPilot and Cube Pilot flight controllers, with full MAVLINK 2.0 protocol support — so they integrate with a wide range of drone platforms and MAVLINK-based ground stations such as QGroundControl.
Can I train and deploy my own AI models on Rhythm payloads?+
Yes. You can train your own custom AI detection model and upload the trained .pt model file directly to the camera — the payload then runs your model on its on-board Nvidia edge computer.
